Python 单轴PID仿真

#!/usr/bin/python
# -*- coding:utf-8 -*-
# 2018-11-13 23：27 lous
# 仿真轴，可在此处实现模拟的传递函数
# =====================================

class AXIS:

    def __init__(self,pos,mass,sample_period):
        #速度 m/s
        self.velocity=0.0
        #位置 m
        self.act_pos=pos
        #加速度 m/s^2
        self.acceleration=0.0
        #质量kg
        self.mass=mass
        #力 N
        self.force=0.0
        #时间 s
        self.sample_period=sample_period

    #给指定大小的力
    def set_force(self,value):
        self.force=value
        self.acceleration=self.force/self.mass

    def get_pos(self):
        delta_time = self.sample_period
        delta_displacement = self.velocity*delta_time+0.5*self.acceleration*delta_time**2
        self.velocity+=self.acceleration*delta_time
        self.act_pos+=delta_displacement
        return self.act_pos

#!/usr/bin/python
# -*- coding:utf-8 -*-
# This file is part of IvPID.
# Copyright (C) 2015 Ivmech Mechatronics Ltd. <bilgi@ivmech.com>
#
# IvPID is free software: you can redistribute it and/or modify
# it under the terms of the GNU General Public License as published by
# the Free Software Foundation, either version 3 of the License, or
# (at your option) any later version.
#
# IvPID is distributed in the hope that it will be useful,
# but WITHOUT ANY WARRANTY; without even the implied warranty of
# MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
# GNU General Public License for more details.
#
# You should have received a copy of the GNU General Public License
# along with this program.  If not, see <http://www.gnu.org/licenses/>.

# title           :PID.py
# description     :python pid controller
# author          :Caner Durmusoglu
# date            :20151218
# version         :0.1
# notes           :
# python_version  :2.7
# ==============================================================================

"""Ivmech PID Controller is simple implementation of a Proportional-Integral-Derivative (PID) Controller in the Python Programming Language.
More information about PID Controller: http://en.wikipedia.org/wiki/PID_controller
"""

class PID:
    """PID Controller
    """

    def __init__(self, P=0.2, I=0.0, D=0.0,sample_time=0):
        self.Kp = P
        self.Ki = I
        self.Kd = D
        self.sample_time = sample_time
        self.delta_time = self.sample_time
        self.clear()

    def clear(self):
        """Clears PID computations and coefficients"""
        self.SetPoint = 0.0
        self.PTerm = 0.0
        self.ITerm = 0.0
        self.DTerm = 0.0
        self.last_error = 0.0
        # Windup Guard
        self.int_error = 0.0
        self.windup_guard = 20.0
        self.output = 0.0

    def update(self, feedback_value):
        """Calculates PID value for given reference feedback
        math::
        u(t) = K_p e(t) + K_i \int_{0}^{t} e(t)dt + K_d {de}/{dt}
         figure:: images/pid_1.png
        :align:   center
        Test PID with Kp=1.2, Ki=1, Kd=0.001 (test_pid.py)
        """
        error = self.SetPoint - feedback_value
        delta_error = error - self.last_error
        self.PTerm = self.Kp * error

        self.ITerm += error * self.delta_time
        # 积分项限幅
        if (self.ITerm < -self.windup_guard):
            self.ITerm = -self.windup_guard
        elif (self.ITerm > self.windup_guard):
            self.ITerm = self.windup_guard

        self.DTerm = delta_error / self.delta_time

        # Remember last time and last error for next calculation
        self.last_error = error
        # 控制器输出
        self.output = self.PTerm + (self.Ki * self.ITerm) + (self.Kd * self.DTerm)

    def setKp(self, proportional_gain):
        """Determines how aggressively the PID reacts to the current error with setting Proportional Gain"""
        self.Kp = proportional_gain

    def setKi(self, integral_gain):
        """Determines how aggressively the PID reacts to the current error with setting Integral Gain"""
        self.Ki = integral_gain

    def setKd(self, derivative_gain):
        """Determines how aggressively the PID reacts to the current error with setting Derivative Gain"""
        self.Kd = derivative_gain

    def setWindup(self, windup):
        """Integral windup, also known as integrator windup or reset windup,
        refers to the situation in a PID feedback controller where
        a large change in setpoint occurs (say a positive change)
        and the integral terms accumulates a significant error
        during the rise (windup), thus overshooting and continuing
        to increase as this accumulated error is unwound
        (offset by errors in the other direction).
        The specific problem is the excess overshooting.
        """
        self.windup_guard = windup

    def setSampleTime(self, sample_time):
        """PID that should be updated at a regular interval.
        Based on a pre-determined sampe time, the PID decides if it should compute or return immediately.
        """
        self.sample_time = sample_time
        self.delta_time = self.sample_time

#!/usr/bin/python
# -*- coding:utf-8 -*-

import random
import PID
import matplotlib.pyplot as plt
from matplotlib import animation
import numpy as np
from scipy.interpolate import spline
import AXIS

# 读取setpoint数据
def read_setpoint(filename):
    f=open(filename)
    setpoint_list=f.readlines()
    data=[]
    for str in setpoint_list:
        data.append(float(str))
    return data

act_pos_list = []
time_list = []
setpoint_list = read_setpoint("setpoint_data.txt")
error_list=[]

def clear_history_data():
    del act_pos_list[:]
    del time_list[:]
    del error_list[:]

sample_period=0.001

result_str="  act_pos\tsetpoint\t    time\t    voice\t  output\t   error"
#假设PID输出为力
#PID的输入为位置
def test_pid(P = 0.2,  I = 0.0, D= 0.0):
    pid = PID.PID(P, I, D, sample_period)
    axis = AXIS.AXIS(0,1,sample_period)
    act_pos = 0
    error=0
    global result_str
    global setpoint_list
    i=0
    for value in setpoint_list:
        #实际位置为轴的位置
        act_pos=axis.get_pos()
        pid.update(act_pos)
        output = pid.output
        #给轴加力
        error=pid.last_error
        error_list.append(error)
        #给力加随机误差
        voice=gen_voice(0.05*abs(output))
        axis.set_force(output + voice)
        pid.SetPoint = value
        act_pos=axis.get_pos()
        act_pos_list.append(act_pos)
        i+=1
        time_list.append(i*sample_period)
        #保存数据
        result_str="%s\n%8.4f\t%8.4f\t%f\t%8.5f\t%f\t%f"%(result_str,act_pos,pid.SetPoint,i*sample_period,voice,output,error)


def save_result():
    f=open("result.log",'w')
    global result_str
    f.write(result_str)
    f.close()

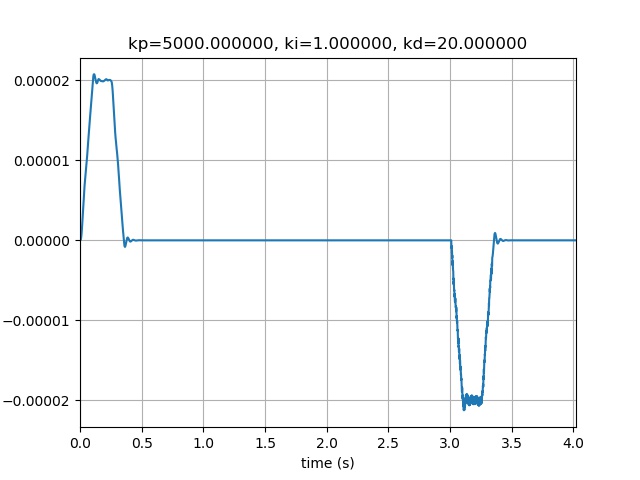

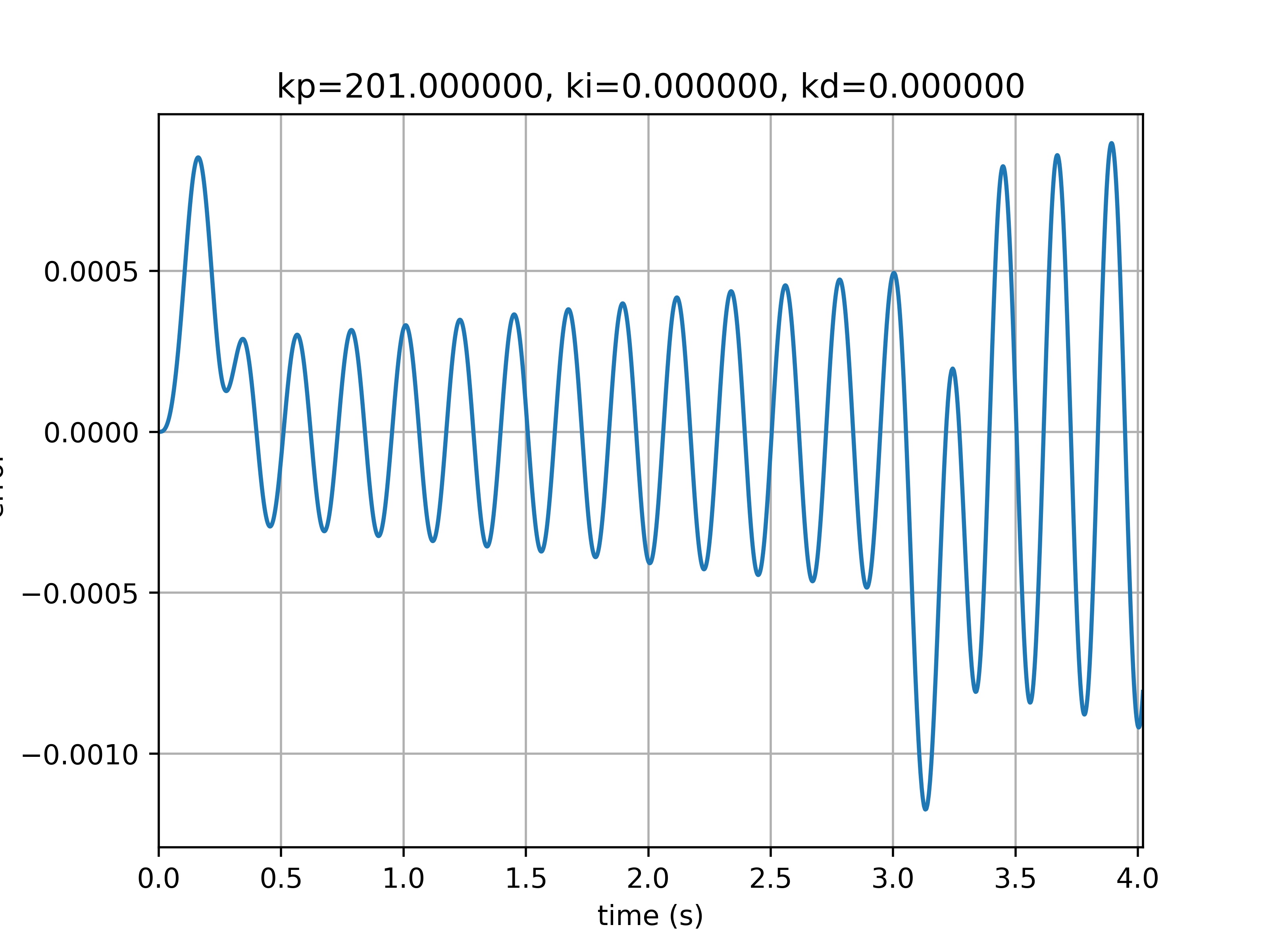

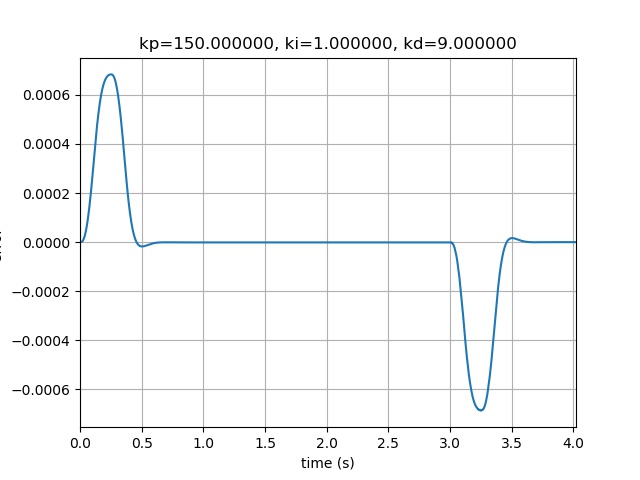

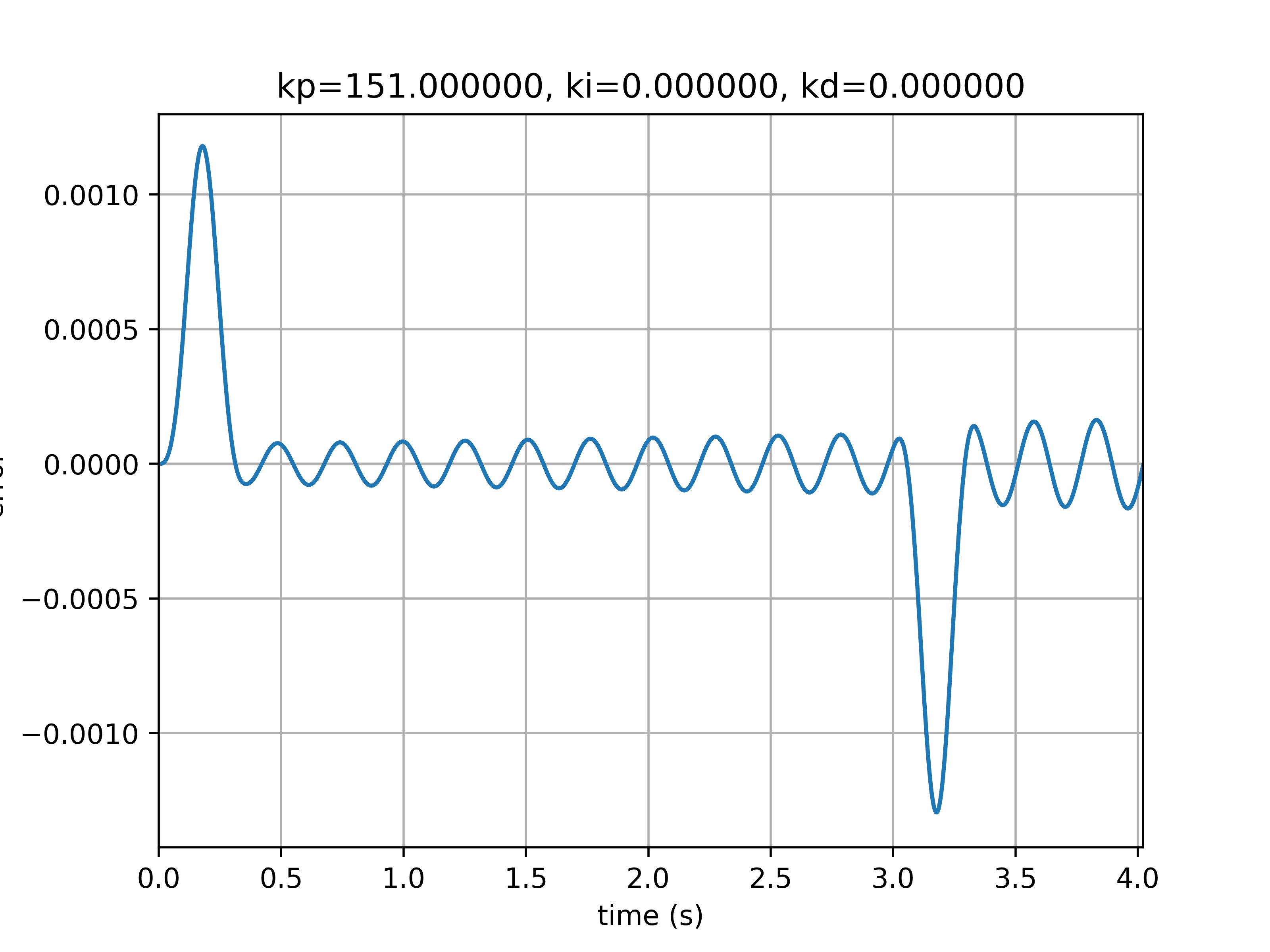

def plot_error(fig_name,title):
    plt.ion()
    ax=plt.subplot()
    ax.plot(time_list, error_list)
    ax.set_xlim((0, time_list[-1]))
    ax.set_ylim((min(error_list)*1.1, max(error_list)*1.1))
    ax.set_xlabel('time (s)')
    ax.set_ylabel('error ')
    ax.set_title(title)
    im=ax.grid(True)
    ims.append(im)
    fig.savefig(fig_name,dpi=500)
    plt.show()
    plt.pause(0.5)
    fig.clf()
    #plt.close(fig)


def gen_voice(mag):
    return random.random()*mag-mag/2.0

def update_fig():
    clear_history_data()
    test_pid(kp, ki, kd)
    pass

if __name__ == "__main__":
    kp=60.0
    ki=0
    kd=0
    fig=plt.figure()
    ims=[]
    for kp in range(1,400,50):
        #for ki in range(1,15,5):
        # for kd in range(90,95,1):
        clear_history_data()
        test_pid(kp, ki, kd)
        print("kp = %f , ki = %f , kd = %f , max_error = %f"%(kp,ki,kd,max(error_list)))
        #save_result()
        # plot_result(500)
        fig_name="result_pics/"+"error_kp_%f_ki_%f_kd_%f.jpg"%(kp,ki,kd)
        title='kp=%f, ki=%f, kd=%f'%(kp,ki,kd)
        plot_error(fig_name,title)

    #anim = animation.FuncAnimation(fig, ims)
    #anim.save("auto_pid.gif",writer='pillow')
